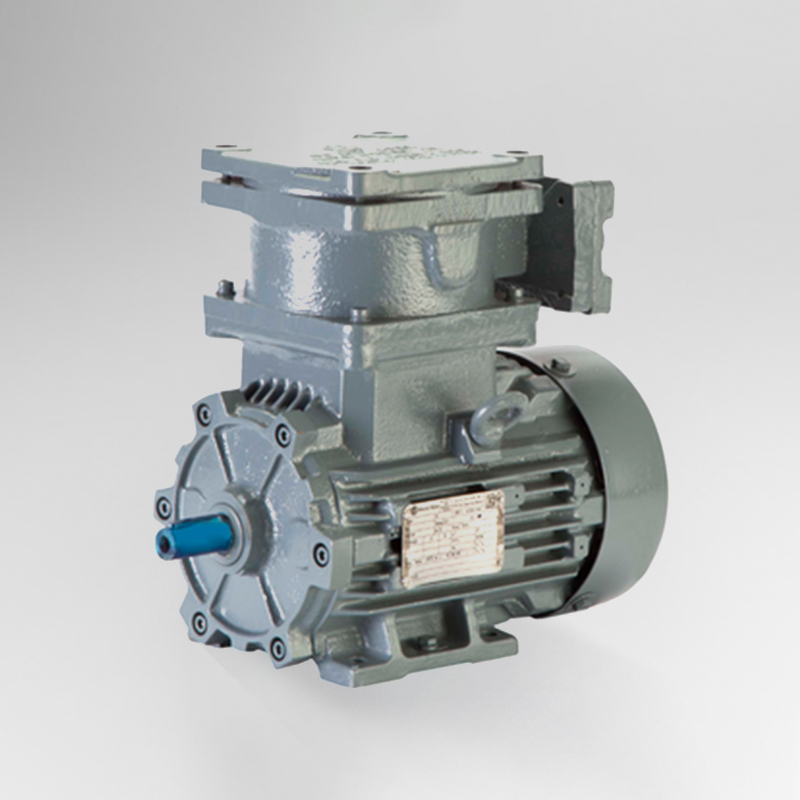

Bharat Bijlee flame resistant motors are industrial three-phase induction motors designed specifically for use in hazardous and explosive environments with highly flammable gasses, vapors, or dust. Because they are made to keep any internal explosion from destroying the surrounding area, they are suitable for locations like petrochemical factories, refineries, oil and gas, chemical plants, mines, LPG bottling units, solvent extraction, and other similar industrial applications.The Bharat Bijlee Flame Proof Motor is made to operate safely in explosive and dangerous situations, including petrochemical factories, oil and gas refineries, and chemical plants. In Zones 1 and 2, these motors offer dependable performance, strong construction, and excellent efficiency while keeping to international safety regulations.
We (We Tech Power Solutions Ltd) are the Authorised Dealer of Bharat Bijlee Flame Proof Motors having range from 0.37 KW to 200 KW & 0.5 HP to 270 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Flame Proof Motors are available in 3000 RPM, 1500 RPM, 1000 RPM and 750 RPM with respect to and 2 Pole, 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with Gas group IIA & IIB. Available Frame sizes are from 80 to 315 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at Top Side.Bharat Bijlee Flame Proof Motorsare available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Bharat Bijlee Flame Proof Motors are 20 °C to +45° C. This motors are also available with specialties i.e. VPI Treatment, Motors suitable for Gas Group I-C, II-C can be offered on request.
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
Why Choose Bharat Bijlee Flame Proof Motors?
✔ Certified Flameproof Design for hazardous locations
✔ High efficiency & low maintenance
✔ Robust construction for harsh industrial conditions
✔ Low noise & vibration
✔ Wide range of power ratings
✔ Suitable for Ex-proof applications
| Specification | Standard Product | Option |
|---|---|---|
| KW / HP | 0.37 To 200 KW / (0.5 To 270 HP) | - |
| RPM / Pole | 3000 RPM (2 Pole) | - |
| RPM / Pole | 1500 RPM (4 Pole) | - |
| RPM / Pole | 1000 RPM (6 Pole) | - |
| RPM / Pole | 750 RPM (8 Pole) | - |
| Frame Size | 80 To 315L | - |
| Mounting | B3 Foot Mounted | - |
| - | B5 Flange Mounted | - |
| - | B35 Foot cum Flange Mounted | - |
| Standard | IE2 / IE3 | - |
| Ambient Temperature | 45 °C | - |
| Body Enclosure | Cast Iron | - |
| Duty | S1 | - |
| Enclosure | TEFC | - |
| Insulation class | F Class | - |
| Phase | 3 Phase Motor | - |
| Suitable for Gas group | II A and II B | - |
| IP degree of protection | IP55 | - |
| Terminal Box Location | TOP | - |
| Voltage | 415 V +-10% | - |
| Frequency | 50 Hz +-5% | - |
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 0.75 KW 1 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 1.5 KW 2 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 2.2 KW 3 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 3.7 KW 5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 5.5 KW 7.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 7.5 KW 10 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 11 KW 15 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 15 KW 20 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 18.5 KW 25 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE FLAME PROOF MOTOR 22 KW 30 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
